カプセル充填設備 GKF Capsylonシリーズ

カプセル充填機 ― GKF Capsylonシリーズ

all-capsule-powder-pellets-gingko

栄養食品・健康食品に特化して設計されたカプセル充填機です。優れたコストパフォーマンスと品質で定評があり、粉末・ペレット・顆粒のカプセル充填が可能です。高い効率性、簡単な操作、シンプルな洗浄といったニーズの高まりに応えるとともに、生産能力を向上させ、単位量当たりのコストを削減する理想的なソリューションです。

主な特長

柔軟性に富んだモジュール設計
製品交換や清掃の所要時間を大幅に短縮し、最大限の生産性を実現
効率性に優れた生産プロセス
メンテナンス・操作が容易で、工程の効率性を確保
高精度かつフレキシブルな充填システム
製品ロスと無駄バネを削減し、収率の飛躍的な向上をサポート

カプセル充填機 ― GKF Capsylonシリーズラインアップ

Ideal for the capsule filling of health & nutrition products

GKF-705-machine
GKF 705

粘性の粉末や粒子径の小さい粉末など、さまざまな特性の粉末・顆粒の高精度充填が可能な低速機です。特に栄養食品に適しています。
能力:3,000~42,000カプセル/時

GKF-3005
GKF 1505

粘性の粉末や粒子径の小さい粉末など、さまざまな特性の粉末・顆粒の高精度充填が可能な中速機です。
最大能力:92,000カプセル/時

GKF-3005
GKF 3005

特に栄養食品、粘性の粉末や粒子径の小さい粉末に適した高速カプセル充填機です。
最大能力:175,000カプセル/時

pill-filling-machine
GKF 6005

This high-speed capsule filling machine and latest addition to the GKF Capsylon series is your ideal partner to increase production capacity, improve product efficiency and reduce unit dosage cost at an output of up to 360,000 capsules per hour.

すべてのGKF機にシンテゴンのスライドゲート技術(特許取得済み)の搭載が可能です(オプション)。スライドゲート技術により、製品ロスが低減し収率が飛躍的に向上します。機械内における粉塵の影響を抑え、同じドージングステーションでペレットや顆粒にも対応可能です。

liquid-capsule-filling-machine

テクニカルデータ

Technical data overview
  GKF 705 GKF 1505 GKF 3005 GKF 6005
Output  42,000 caps/h 92,000 caps/h 175,000 caps/h 360,000 caps/h
Segment bores 5 11 21 48
Machine cycles Max. 150 cycles/min Max. 140 cycles/min Max. 140 cycles/min Max. 125 cycles/min
Dimensions (HxWxD) 2031x868 x 1200 mm 2099 x 1219 x 1688 mm 2099 x 1219 x 1688 mm 2276 x 1908 x 1808 mm
Connected voltage

400 V ±10% , 50/60Hz,3PH/N/PE 6KW

400 V ±10% , 50/60Hz,3 ph/PE, 2.5kW

400 V ±10% , 50/60Hz,3 ph/N/PE,13 KVA

400 V ±10% , 50/60Hz,3 ph/PE, 40A, 23 kW

アフターサービス
アフターサービス

専門技術者によるメンテナンス計画、技術サポート、最新化(改造)、デジタルソリューションによるライン最適化まで、機械のライフサイクル全体にわたり、お客様をサポートします。

サービス&サポート
サービス&サポート

スペアパーツ
スペアパーツ

シンテゴンについて

about-us

シンテゴンは食品や医薬品の包装を通じて 人々の暮らしの向上に貢献するべく、世界中の 医薬品·食品の製造に携わるお客様をサポートしています。

年の歴史
特許取得数
納品台数
拠点数
liquid-capsule-band

Why capsule sealing?

Capsule sealing with banding technology ensures the highest product quality and prevents liquid-filled capsules from leakage. Banding also provides an additional measure for anti-counterfeiting of capsules filled with powder or other components. Sealing provides an enhanced safety measure to meet regulatory requirements. Our Syntegon GKB 2100 banding machine can handle both hard gelatine and HPMC (plant-based) capsules.

GKB_2100_PRESS_Syn

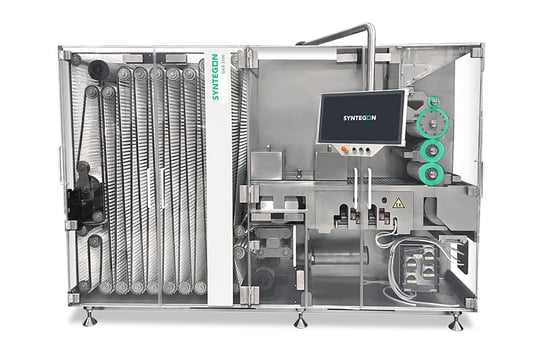

The Syntegon GKB 2100 banding machine

The new GKB 2100 features a particularly robust and flexible process, combined with the highest yield and maximum process stability. The focus is on user-friendliness, as well as very good accessibility for cleaning and easy format part changeovers. Our banding machine achieves an output of up to 125,000 capsules per hour.

製品資料

GKF Capsylon Series
GKF Capsylon Series

The capsule filling machine is specially designed for the health and nutraceutical industry

GKF 705 Capsylon
GKF 705 Capsylon

製薬・健食業界において最も理想的な 全自動ハードカプセル充填機

GKF 1505 Capsylon
GKF 1505 Capsylon

Medium-speed capsule filling machine from Syntegon

GKF 3005 Capsylon
GKF 3005 Capsylon

High-speed capsule filling machine for sticky and fine grained powders from Syntegon

GKF 6005 Capsylon
GKF 6005 Capsylon

The new generation high-speed capsule filling machine from Syntegon for the health and nutraceutical industry

GKB 2100
GKB 2100

The GKB 2100 hard capsule sealing machine is suitable for both hard gelatin and HPMC (plant-based) capsules
