カプセル充填機 ― GKFセレクションシリーズ

capsule-composition

柔軟性と安全性に優れた最新のカプセル充填機シリーズです。ハードカプセル(HPMCやゼラチン)への多様な製品の充填を行い、製品の組み合わせ充填も可能です。モジュールの組合せによって、(ミニ)タブレット・ペレット・顆粒・液体の充填に加え、これらの組み合わせ充填にも対応できます。迅速な製品交換と直感的な操作で、医薬品や健康・栄養食品の生産に理想的なカプセル充填機です。

主な特長

高精度かつ柔軟性ある充填
製品ロスの少ない高精度充填システムで収率が向上
モジュール方式のフレキシブルな機械設計
製品交換時間・清掃時間を短縮し、最高の生産性を実現
オペレータフリーの生産
自動トラブルシューティング(ASB)機能に加え、全数重量チェック機能を備えたフィードバックループを搭載

カプセル充填機 ― GKFセレクションシリーズラインアップ

Syntegon-GKF-702

GKF 702 capsule filling machine

Flexible capsule filling machine for R&D and small batch production.

Syntegon-GKF-1400

GKF 1400 capsule filling machine

The compact and flexible capsule filling machine.

Syntegon-GKF-2500

GKF 2500 capsule filling machine

The reliable capsule filling machines with unique yield and OEE for high performance.

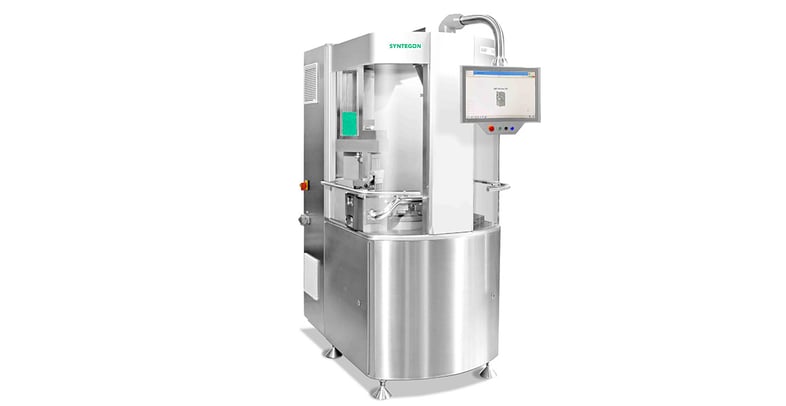

Syntegon-GKF-702
GKF 702

研究開発、治験薬生産のほか、小バッチ生産へのスケールアップに適した低速カプセル充填機です。
能力:3,000~42,000カプセル/時(全カプセルサイズ)

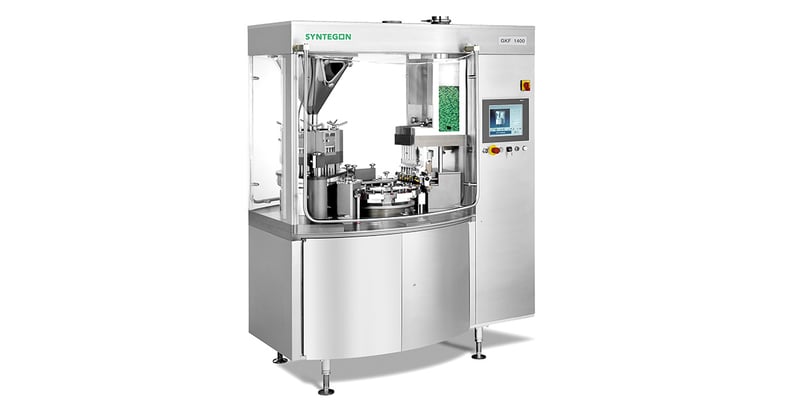

Syntegon-GKF-1400
GKF 1400

コンパクトで柔軟性ある中規模バッチ生産用中速カプセル充填機です。
最大能力:84,000カプセル/時(全カプセルサイズ)

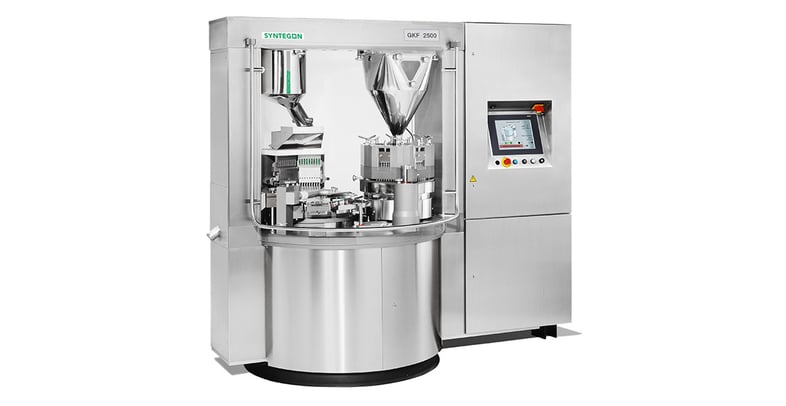

Syntegon-GKF-2500
GKF 2500

コンパクトで柔軟性ある中~大型バッチ生産用高性能カプセル充填機です。
最大能力:150,000カプセル/時(全カプセルサイズ)

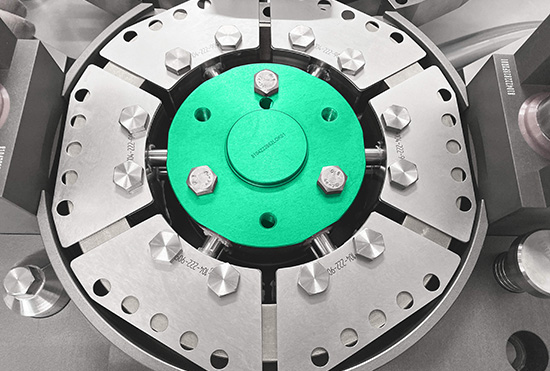

シンテゴンのスライドゲートシステム(特許取得済み)は、製品ロスの低減と飛躍的な収率向上に貢献します。機械内での粉塵の影響を抑え、同じドージングステーションでペレットや顆粒にも対応可能です。

slide-gate

テクニカルデータ

Technical data overview
  GKF 702 GKF 1400* GKF 2500*
Output 3,000 up to 42,000 caps/h 84,000 caps/h 150,000 caps/h
Segment bores 5 10 18
Machine cycles Max. 140 cycles/min Max. 140 cycles/min Max. 140 cycles/min
Dimensions (HxWxD) 2006 x 805 x 1298 mm 2200 x 998 x 2036 mm 2020 x 1389 x 2072 mm
Connected voltage

400 V ±10% , 50/60 Hz

Special voltages on request

400 V ±10% , 50/60 Hz

Special voltages on request

400 V ±10% , 50/60 Hz

Special voltages on request

*also available with integrated 100% capsule check weighing

アフターサービス
アフターサービス

専門技術者によるメンテナンス計画、技術サポート、最新化(改造)、デジタルソリューションによるライン最適化まで、機械のライフサイクル全体にわたり、お客様をサポートします。

サービス&サポート
サービス&サポート

スペアパーツ
スペアパーツ

シンテゴンについて

about-us

シンテゴンは食品や医薬品の包装を通じて 人々の暮らしの向上に貢献するべく、世界中の 医薬品·食品の製造に携わるお客様をサポートしています。

年の歴史
特許取得数
納品台数
拠点数
liquid-capsule-band

Why capsule sealing?

Capsule sealing with banding technology ensures the highest product quality and prevents liquid-filled capsules from leakage. Banding also provides an additional measure for anti-counterfeiting of capsules filled with powder or other components. Sealing provides an enhanced safety measure to meet regulatory requirements. Our Syntegon GKB 2100 banding machine can handle both hard gelatine and HPMC (plant-based) capsules.

GKB_2100_PRESS_Syn

The Syntegon GKB 2100 banding machine

The new GKB 2100 features a particularly robust and flexible process, combined with the highest yield and maximum process stability. The focus is on user-friendliness, as well as very good accessibility for cleaning and easy format part changeovers. Our banding machine achieves an output of up to 125,000 capsules per hour.
