錠剤のコーティング

錠剤コーター

HubSpot Video

錠剤のコーティングは、着色や味をマスキングする目的や、腸溶コーティング、放出制御コーティング、有効成分の追加といった用途で需要が増加しています。

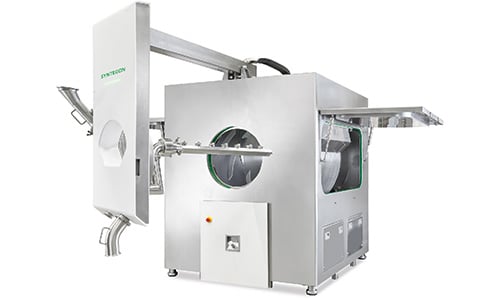

業界の新たなベンチマークとなる錠剤コーターSepion(セピオン)は、14 kgから800 kgまで対応し、バッフル交換なしで10%~100%の投入量を処理できます。100%の投入量では、相対標準偏差3%未満の均一な混合を8分以内に実施します。クローズドシステムとして原料のハンドリングと完全自動クリーニングの実施が可能です。オプションとして、高活性の有効成分を含む錠剤のコーティングもできます。

主な特長

高速で安定したコーティング処理
最適化されたドラム構造とスプレーシステム
広範囲なバッチサイズに対応
バッフルの交換不要で10%~100%の投入量に対応
お客様をフルサポート
処方開発におけるサポート、保守サービス契約など、製品上市までのお客様のあらゆるニーズに対応

シンテゴンの錠剤コーターラインアップ

HubSpot Video

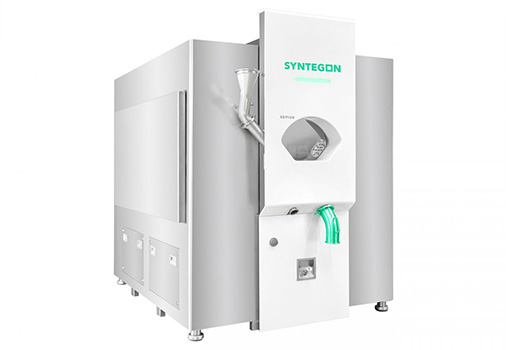

コンテインメント性能に優れた密閉システム

ドラム式コーターSepionは、投入・サンプリング・排出をクローズドシステム内で行います。ドア面に設置した3ヵ所のクランプ接続をインターフェースとして柔軟に使用できます(例:高活性物質を含む錠剤のコーティングの際は、コンテインメント仕様にアップグレード)。さらに、Sepionには自動クリーニングシステムが装備されています。

HubSpot Video

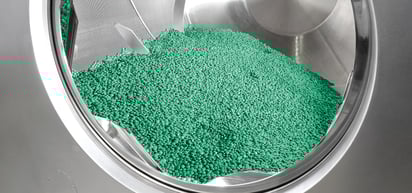

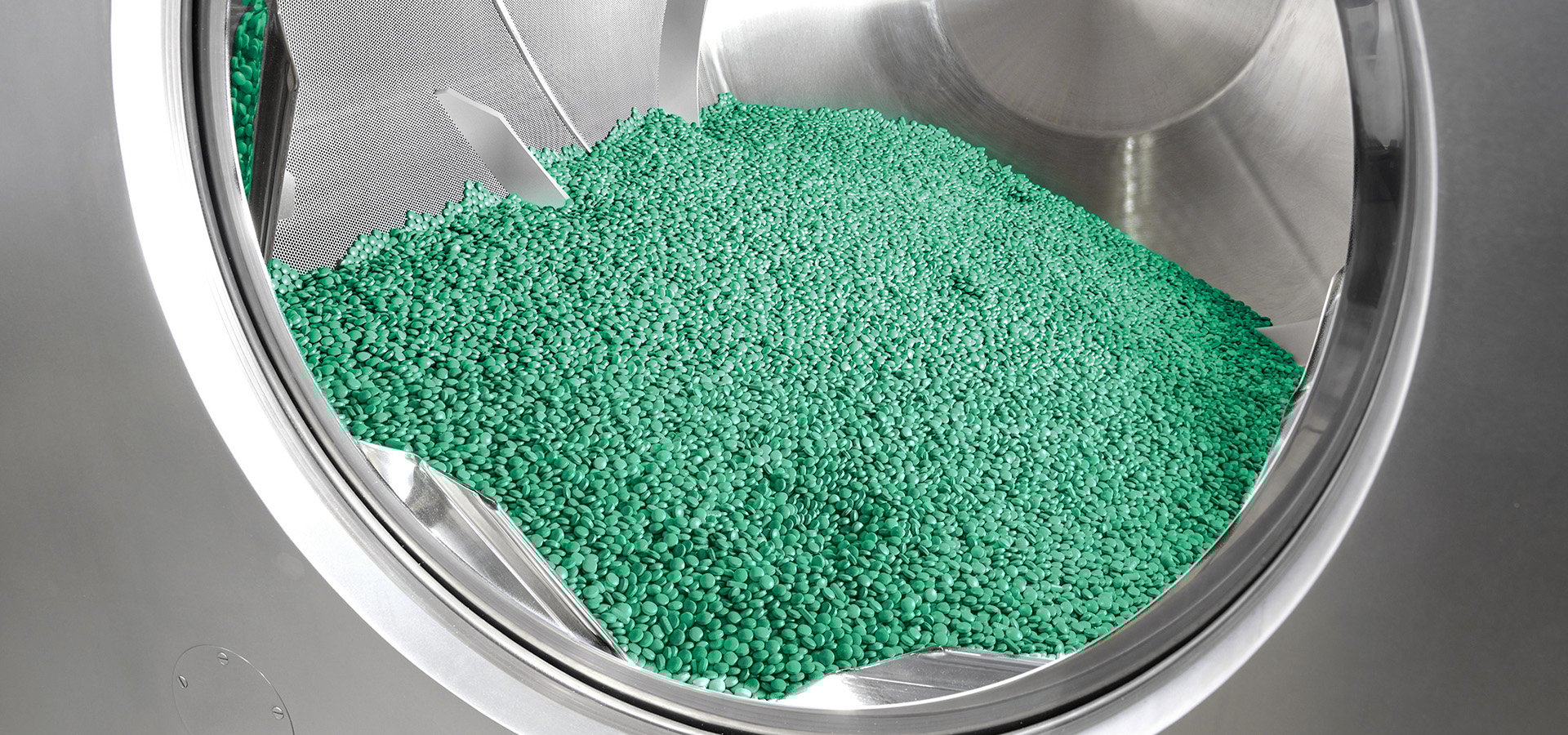

独自のドラム性能

ドラムを延長することにより、錠剤層を浅くし、錠剤あたりのコーティング回数を増やし、スプレーガンを増設しました。これによりスプレー率の向上と処理時間の短縮が実現しました。ドラムの開放面積は51%で、乾燥能力がさらに向上しています。

graphics-feature-article

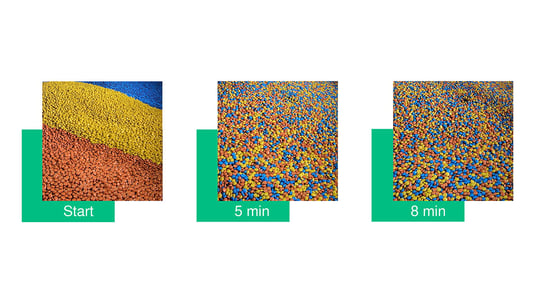

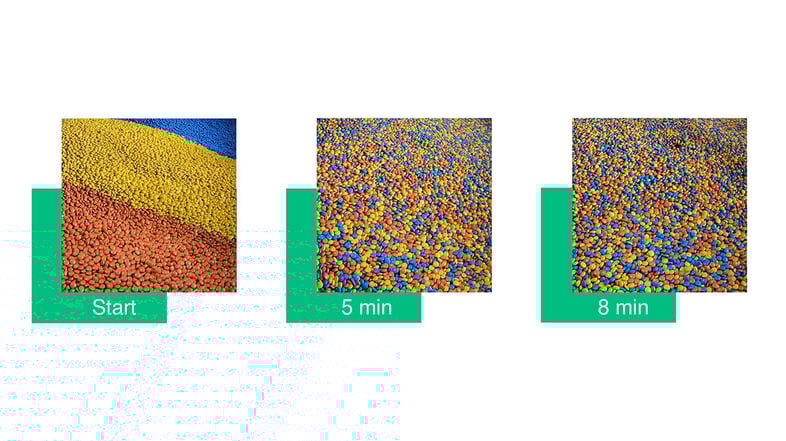

バッチ対応の柔軟性と均一な混合

Sepionのドラムは、完全溶接されたバッフルは交換不要で、10%~100%の充填レベルに対応可能です。同時に、100%の充填レベルでは相対標準偏差3%未満の均一な混合を8分以内に行います。

HubSpot Video

自動スプレーアーム

当社のドラムコーターには自動スプレーアームを装備しています。充填レベルに応じて最適なスプレーガンと錠剤の距離を操作パネルから調整できます。手動で操作することなく理想的なスプレー角度を維持することができ、オペレーターの安全性を向上させています。

HubSpot Video

検出効率

オプションのレーザーでスプレーガンと錠剤の距離を測定し、完全自動化されたレシピでの運転を可能にすることで、オペレーターによる手動介入を不要にします。温度に敏感な製品を取り扱い、最高の製品安全性を確保するため、錠剤の表面温度を正確に測定する赤外線センサーの設置が可能です。

sepion

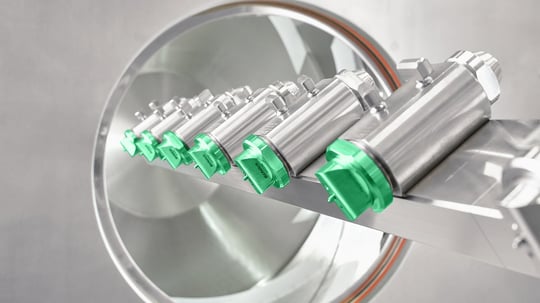

さまざまなニーズに応えるスプレーアーム

錠剤コーターSepionの標準スプレーアームには、液体用の個別供給チューブを備えたスプレーガンを取り付けています。オプションのProバージョンは、すべてのホースを統合した共通の液体・圧空供給システムを搭載しています。本システムは工具不要のクイックリリース仕様で、設置ミスを防ぎ、設定や清掃の時間をさらに短縮します。

HubSpot Video

高度なクリーニング機能

効率性の高いクリーニングシステムを提供します。製品や現場で使用可能な洗浄剤に応じて、さまざまな洗浄コースを選択可能です。ゾーン化されたレシピ駆動のシステムと、製品接触部全体をカバーする洗浄ノズルの組み合わせにより、再現性がありバリデーション可能な洗浄を行います。

開発の初期段階に最適

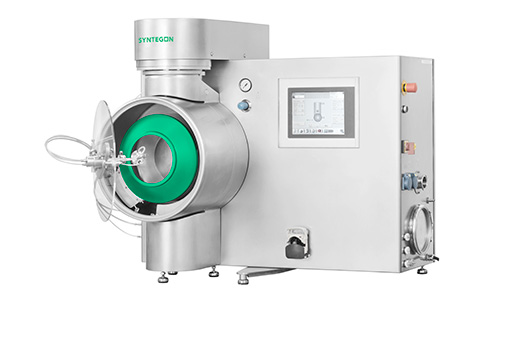

卓上型ユニットSolidlab 1(ソリッドラブ1)は、研究開発における小バッチの試験を迅速かつ簡単に行うことができます。フィージビリティスタディに最適で、流動層またはドラムコーターモジュールを装備することができます。ドラムコーター仕様には2種類のドラムが付属し、0.25~1.2 kgのバッチに対応します。レシピの作成と管理を行う制御システム“PROVICON” を搭載しており、お客様の製品開発のスピードアップをサポートします。

granulator-pellets

用途

tabletten
錠剤

高い流動性や理想的な粒度分布といった顆粒特性は、圧縮性に優れ、がん治療などの非常に低い原薬濃度においても適しています。

テクニカルデータ

starting from less than
liter
drum capacity up to
liters
from 10 to
% batch size flexibility

% open drum surface
テクニカルデータ


Solidlab 1

R&D scale

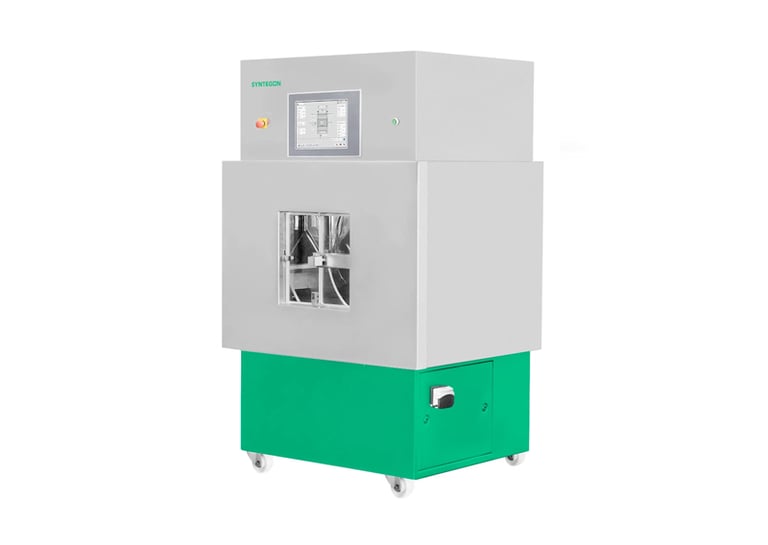

Solidlab 2 Plus

R&D scale

Sepion

Production scale

Drum size (l)

0.8; 1.5

exchangable drums

2; 4; 8; 16

exchangable drums

175 – 1,000

fixed drum size

Batch size (kg) 250 g to 1.2 0.8 to 12.8 14 to 800
At a density of (kg/l) 0.8 0.8 0.8



アフターサービス
アフターサービス

専門技術者によるメンテナンス計画、技術サポート、最新化(改造)、デジタルソリューションによるライン最適化まで、機械のライフサイクル全体にわたり、お客様をサポートします。

サービス&サポート
サービス&サポート

スペアパーツ
スペアパーツ

シンテゴンについて

pill-coating-machine

シンテゴンは食品や医薬品の包装を通じて 人々の暮らしの向上に貢献するべく、世界中の 医薬品·食品の製造に携わるお客様をサポートしています。


数字で見るヒュットリン

顧客満足度

>
年の実績

>
納入台数

シンテゴンの経口固形製剤(OSD)向けソリューション

資料ダウンロード

Sepion brochure
Sepion brochure

R&D brochure
R&D brochure

Containment Brochure
Containment Brochure

Industry requirements and Syntegon’s containment solutions for OSD forms

Pharma Solid
Pharma Solid

Hüttlin Services
Hüttlin Services

関連情報

ニュース

シンテゴンジャパンが配信するプレスリリースやお知らせをご覧いただけます。

プレス(英語)

シンテゴングローバルが配信するプレスリリースをご覧いただけます。

イベント情報(英語)

シンテゴングローバルで開催される展示会やウェビナーなどのイベント情報をご覧いただけます。

固形製剤関連情報

high-shear-slider
High-shear mixer
fluid-bed-dryer-1
Fluid bed
tablets-double-layer
Tablet compression
capsule-filling-process
Capsule filling
laboratory-services-1
Pharma services (Solid)
nutrition-and-health-product-services
Nutrition and health services
powder-packing
VFFS of powder and granules​
xelum
Continuous manufacturing

FAQ

Coating is crucial for tablets: from coloring and taste-masking to functional coatings, it can support the identification and application of the tablet. Enteric coatings and sustained/controlled release coatings ensure that the right amount of API is released at the right location at the right time. Moreover, APIs can be part of the coating suspension (active coating).

Drum coaters are typically used for the film and/or sugar coating of tablets. The core of a drum coating machine is a horizontally rotating, perforated drum with baffles that support the homogeneous mixing of tablets. In order to apply the coating suspension, the drum features spray guns that are positioned on a spraying arm which is positioned in parallel to the tablet bed. The types of coating that manufacturers can realize with a drum coater include color coating, taste-masking, enteric coating, controlled release coating as well as active coating.

A drum coating machine ensures three essential tablet coating steps, including tablet mixing, spraying of the coating suspension, and drying of the coated tablets.

To minimize risks for personnel, products and the production environment, closed charging, sampling and discharging is of utmost importance – especially when it comes to contained applications. A closed process ensures a high-quality OSD product for patients.

For pharmaceutical manufacturers, flexibility is key. Modern equipment allows for filling levels ranging from 10 to 100 percent to process different batch sizes in the same drum, preferably with no changeovers, e.g. baffle changes.

When it comes to coating uniformity, the right gun-to-bed distance is crucial to avoid any overlaps or gaps in the spraying pattern. State-of-the-art machines come with a fully automatic adjustment of the gun-to-bed distance, supporting contained applications without manual intervention. Additionally, a fully automatic adjustment of the gun-to-bed distance provides more flexibility, e.g. the above-mentioned drum filling levels of 10 to 100 percent.

Another key requirement of pharmaceutical manufacturers is process efficiency. Extending the length of the drum allows for a shallower tablet bed and results in a higher coating frequency per tablet. At the same time, manufacturers can increase the number of spray guns, resulting in higher spray rates and significantly shorter process times.

By significantly reducing process and cleaning times, drum coating contributes to less energy consumption and supports a more sustainable operation.
