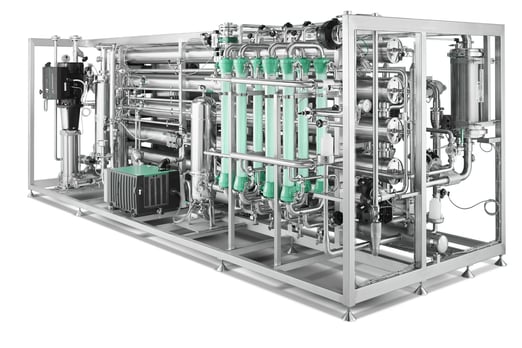

Membrane-Based Pure Media Systems

Membrane-based PW, HPW and WFI generation

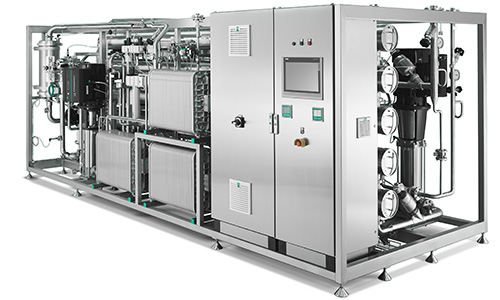

membrane-based

Syntegon offers a modular, turn-key solution for the “cold” membrane-based generation of pharmaceutical-grade pure water (PW), high purity water (HPW), and water for injection (WFI). Employing a full range of technologies including multi-layer filtration and ultrafiltration as well as physical-chemical processes including reverse osmosis and electrodeionization, our systems are configured to precisely address your individual requirements. Storage can be either hot or cold. Our approach substantially reduces the associated footprint, energy consumption, investment costs, qualification expenses, and ongoing maintenance costs when compared to traditional distillation-based systems.

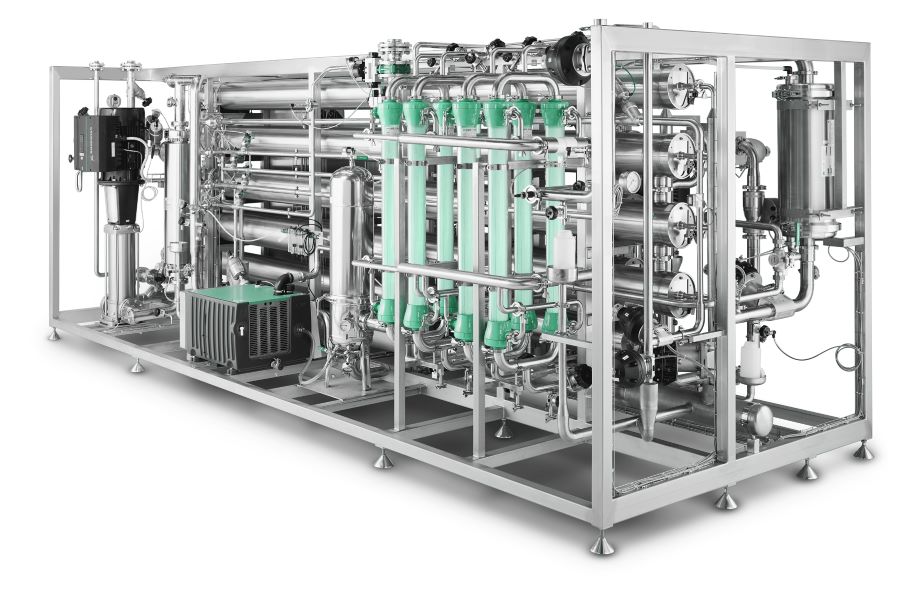

background-image

Key benefits

Reliability
The robust membrane-based technology is highly reliable. You can count on both the quality of the water and the stability of its supply.
Serviceability
The modular design is highly hygienic and accessible. Routine maintenance is quick and easy, minimizing downtime.
Sustainability
The compact skidded system is highly energy-efficient. The approach substantially reduces both operating costs and the carbon footprint.

Features of our membrane-based pure media systems

Configuration flexibility

Syntegon’s membrane-based pure media systems are robust, proven modular solutions that can be easily and quickly configured to meet your specific requirements. All modules are pre-tested and readily available. With a nominal production range of 200 to 20,000 liters per hour, the skidded systems are suitable for clinical and commercial manufacturing facilities alike.

pure-media-systems-energy

Energy efficiency

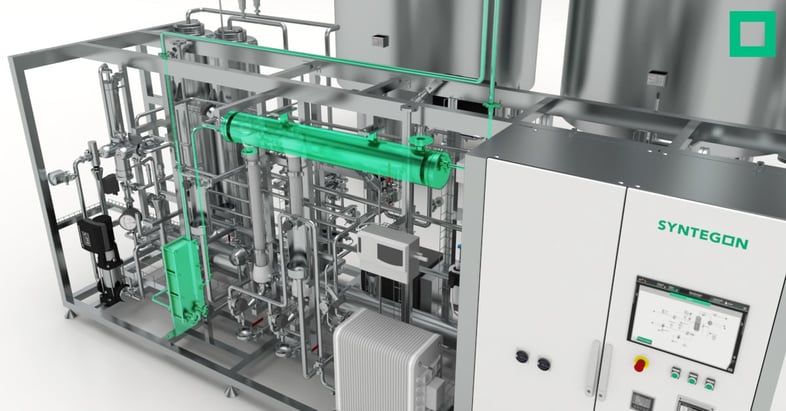

Syntegon uses the highly energy-efficient “cold” membrane process of reverse osmosis, along with electrodeionization and ultrafiltration, in a modular, full-featured design. Storage can still be either hot or cold. This approach substantially reduces the initial capital investment, required footprint, energy consumption, as well as the ongoing qualification and maintenance costs when compared to traditional distillation-based systems.

Footprint

Footprint and serviceability

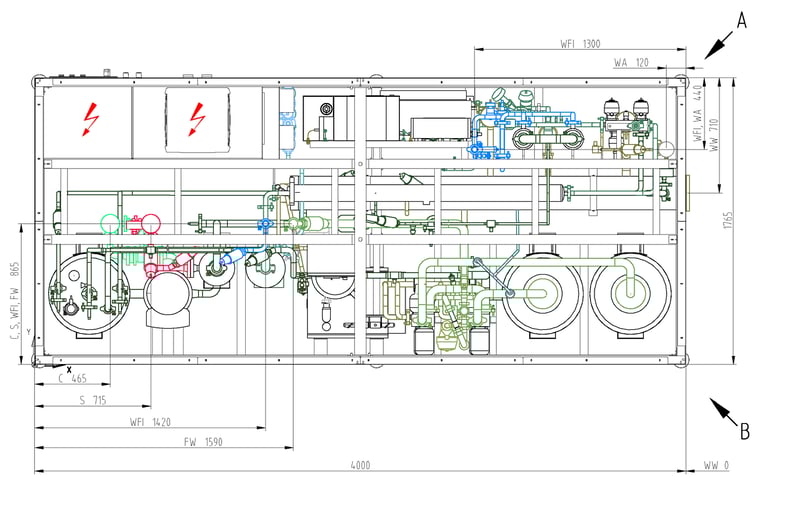

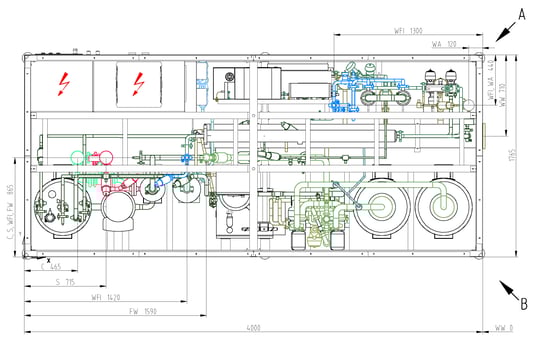

Featuring a small footprint and height in all configurations for easy drop-in installation, the modular design is highly hygienic and accessible, making maintenance quick and easy. Measuring devices and sensors throughout ensure that the filter and water quality are monitored and maintained during the entire production process.

Water for injection (WFI) is an essential utility in pharmaceutical manufacturing that has traditionally been generated through the energy-intensive process of distillation. The recent revision of monograph 0169 of the European Pharmacopoeia, however – which has aligned the EP with the US and Japanese Pharmacopoeias in allowing suitable techniques other than distillation for the generation of WFI – has now made highly energy-efficient membrane-based systems a universally accepted alternative.

Benefits:
  • Processes for PW, HPW, and WFI quality
  • All “cold” processes with high energy efficiency
  • Modular design to meet customer-specific requirements
  • Skidded, compact system with drop-in installation
  • Excellent accessibility for easy maintenance

Use case scenarios

pure-media-1
Raw/Potable water pre-treatment

Tailored modular pretreatment systems for both raw and potable water

membrane-based
Pure and high purity water

Membrane-based, energy-efficient GMP generation of PW and HPW with a small footprint and excellent accessibility

pure-media-systems
“Cold” water for injection

Membrane-based, highly energy-efficient GMP system for the “cold” generation of WFI with ultrafiltration for the final reduction of endotoxins

pure-media-2
Storage and distribution

Comprehensive storage and distribution systems for PW and WFI with continuous monitoring of all quality-relevant attributes

pure-media-recirculation-loops
Recirculation loops

Distribution loops with recirculation lines with point-of-use management and sanitization

Technical data of our membrane-based pure media systems

pretreatment up to
l/h
PW and HPW up to
l/h
WFI up to
l/h
storage and distribution up to
l/h

Technical data
  Pretreatment PW and HPW WFI

Storage and

Distribution

Output*

(l/h)

up to 20,000 200-20,000 300-13,000 up to 38,500



Options

  • raw water ultrafiltration
  • activated carbon filter
  • hot water sanitization
  • multimedia filter
  • chemical dosing
  • softening
  • antiscalant dosing
  • thermal sanitization
  • chemical sanitization
  • sanitization and softening during operation mode
  • hot WFI production
  • softening
  • antiscalant dosing
  • thermal sanitization
  • chemical sanitization
  • sanitization and softening during operation mode




  • double pump station
  • steam sterilization (SIP)
  • UV lamp
  • TOC measurement
  • cold storage with sanitization 85C
  • hot storage with sanitization 121C
  • cold storage with ozone


Configure-to-order selection

We offer the right pretreatment, generation, and storage and distribution solutions for every water quality. Larger and intermediate sizes are also available upon request, as well as a wide range of other modular options that can be integrated into customer-specific systems.

*standard configure-to-order systems; custom solutions with higher output are also available
